Roof Drain Spare Parts
with codes for ordering
BODY : Side Exit 50mm
Order Code
3101.113 Big Flange

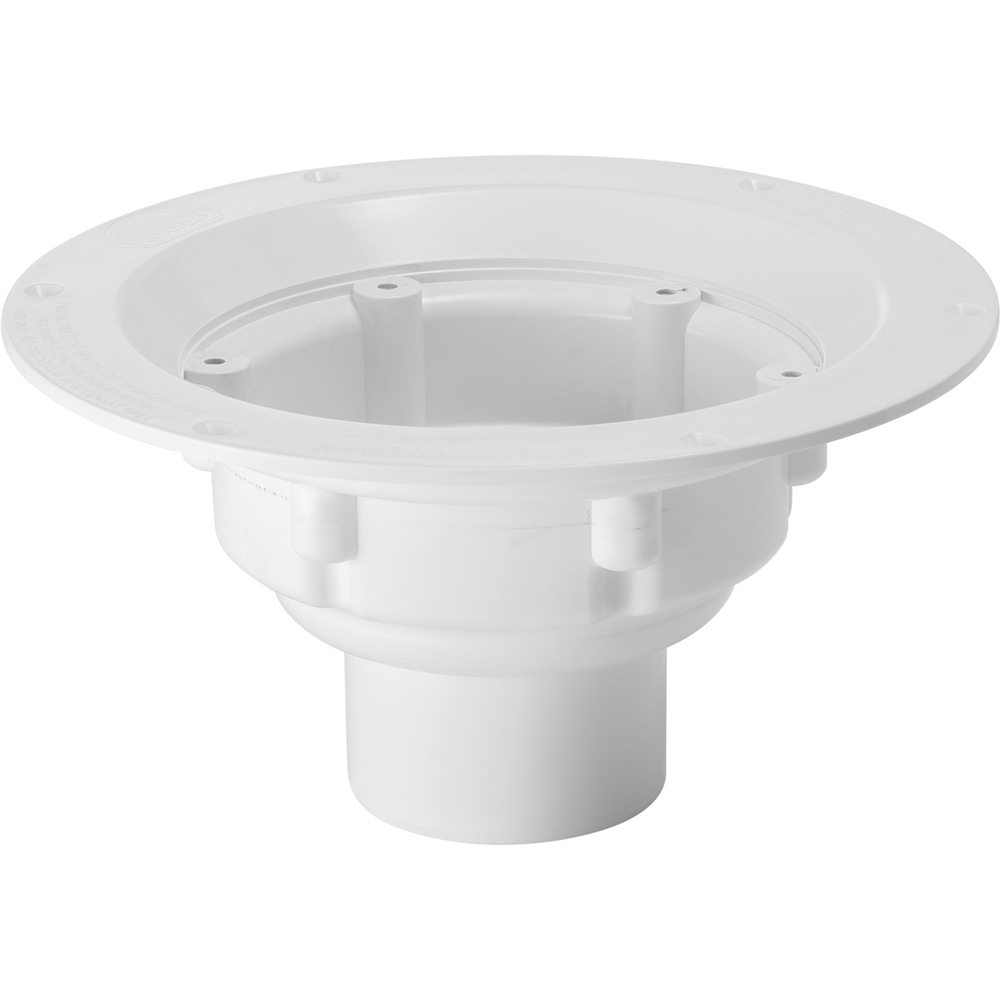

Body : Bottom Exit 50mm
Order Code
3101.114 Big Flange
Body : Bottom Exit 65mm
Order Code
3101.118 Big Flange
Body : Bottom Exit 65mm
Order Code
3101.090 Small Flange
Body : Side Exit 80mm
Order Code
3101.110 Big Flange
Grate not included
Body : Side Exit 80mm
Order Code
3101.115.1 Small Flange
Body : Bottom Exit 80mm
Order Code
3101.111 Big Flange
Body : Bottom Exit 80mm
Order Code
3101.115 Small Flange

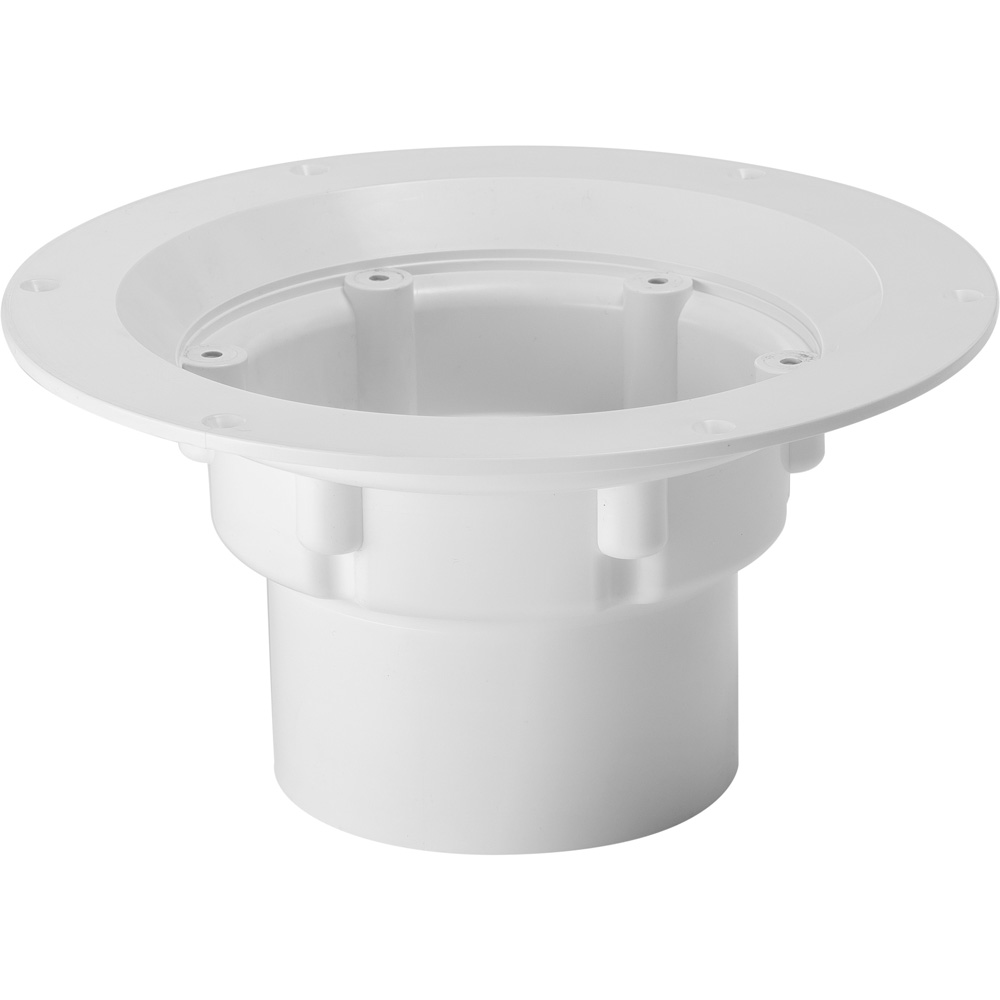

BODY: Bottom Exit 100mm
Order Code
3101.116 Big Flange
Body : Side Exit 100mm
Order Code
3101.116.1 Big Flange

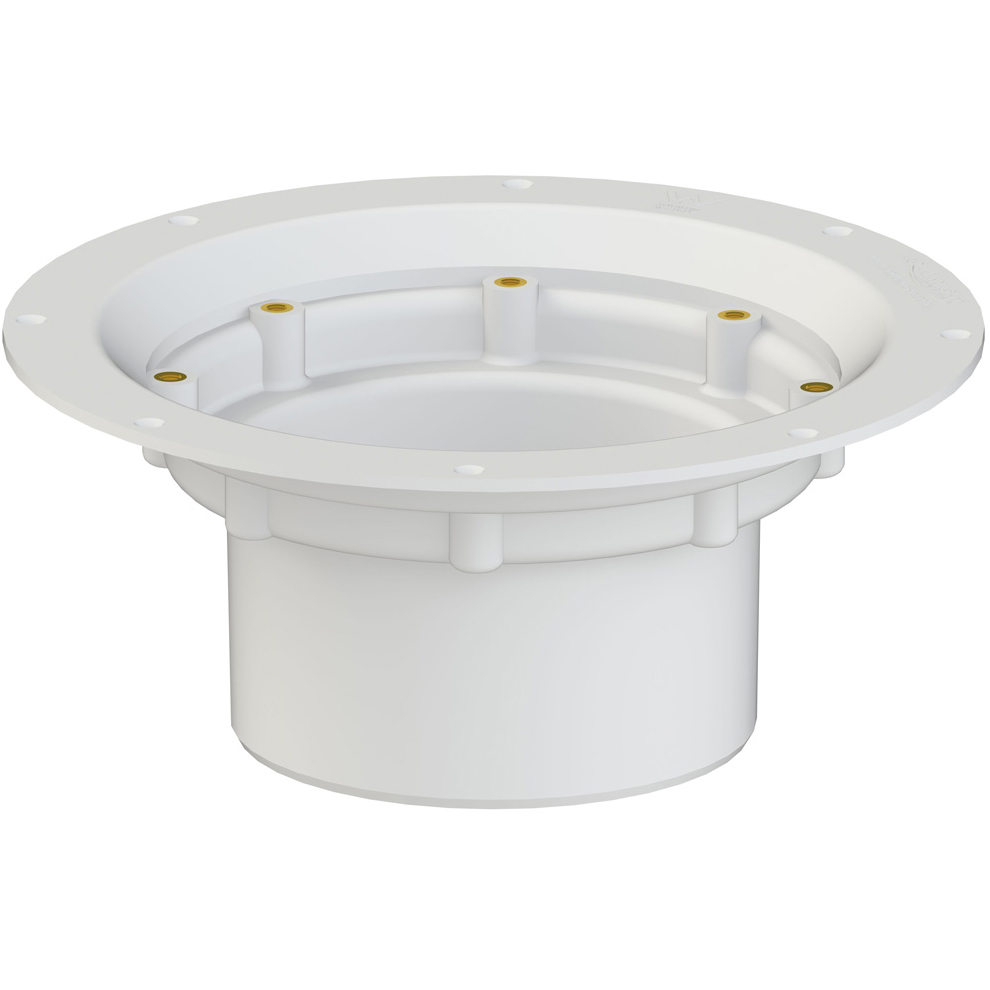

BODY: Bottom Exit 150mm
Order Code
3101.117 Big Flange

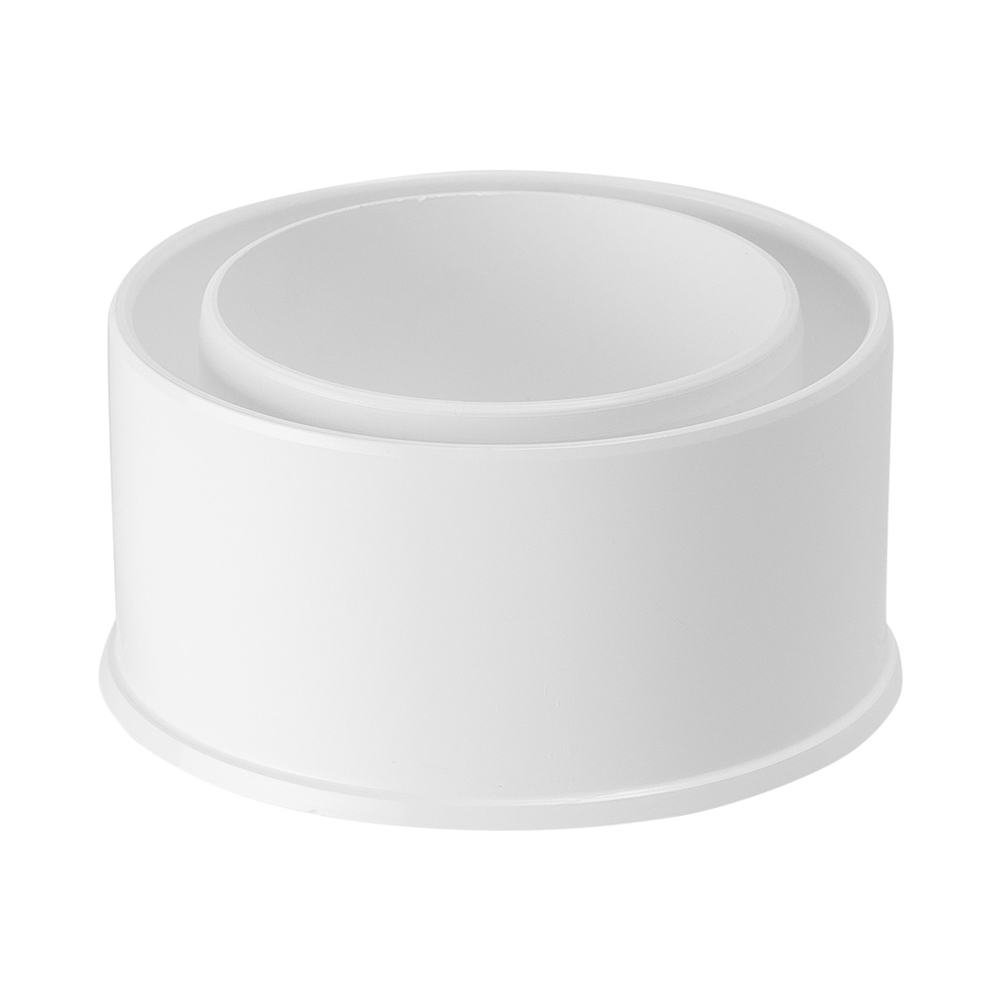

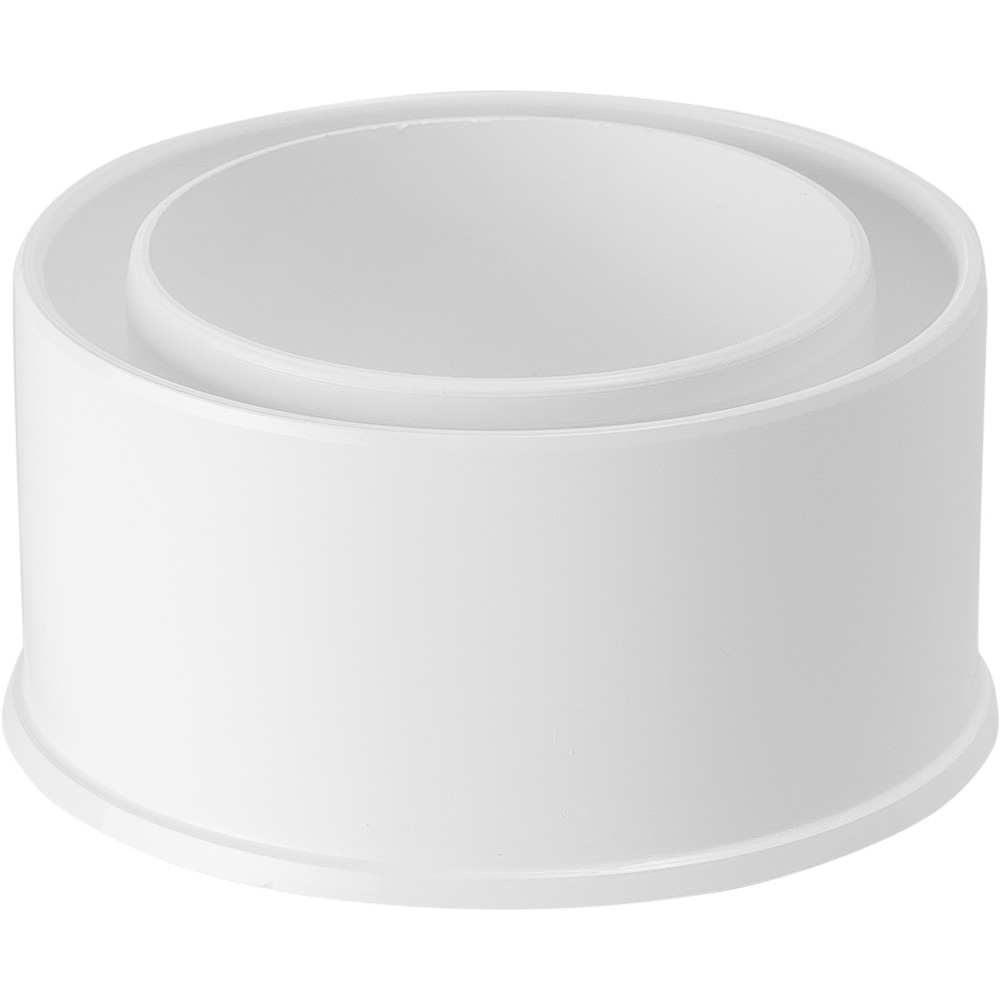

Reducer Bush 100/80
Order Code : 3101.600

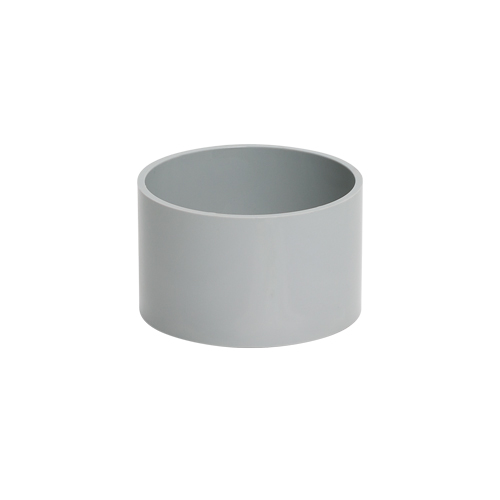

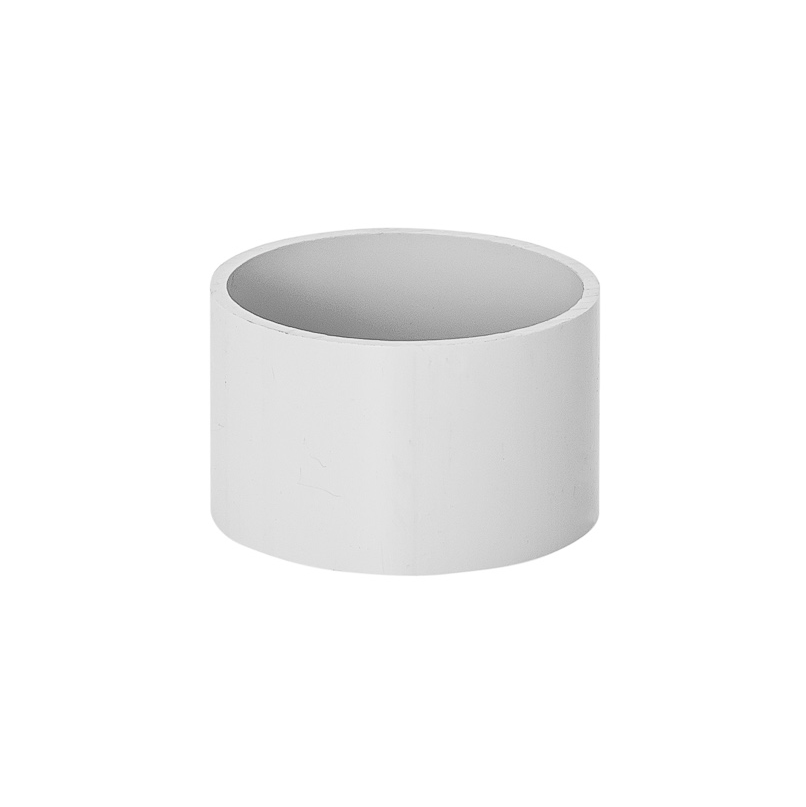

Overflow Insert 65 Small Flange
Order Code : 3101.704

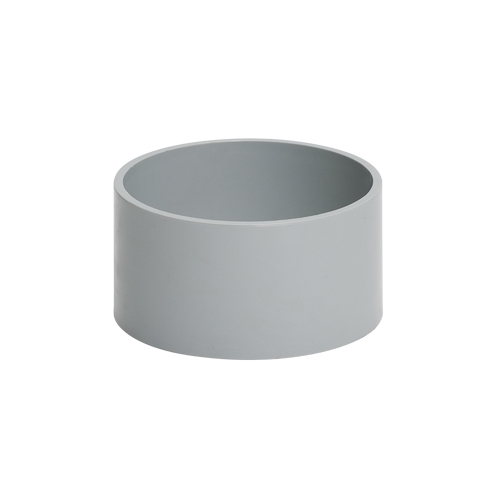

Overflow insert 80 Small Flange
Order Code : 3101.703

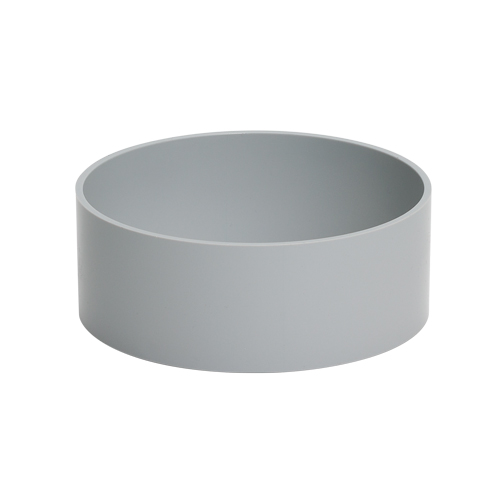

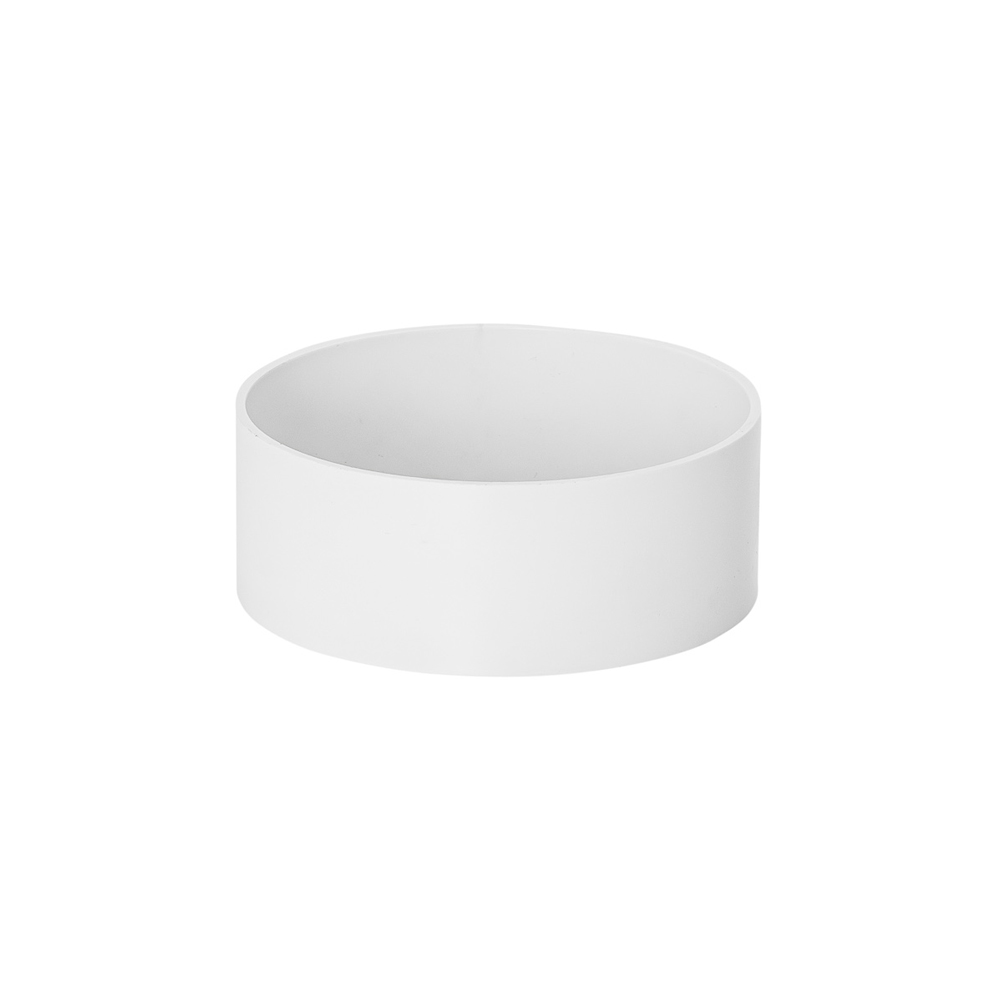

Overflow Insert 100 and all Big Flange
Order Code : 3101.701

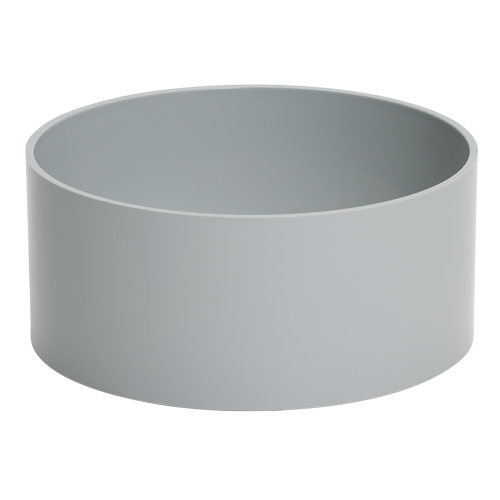

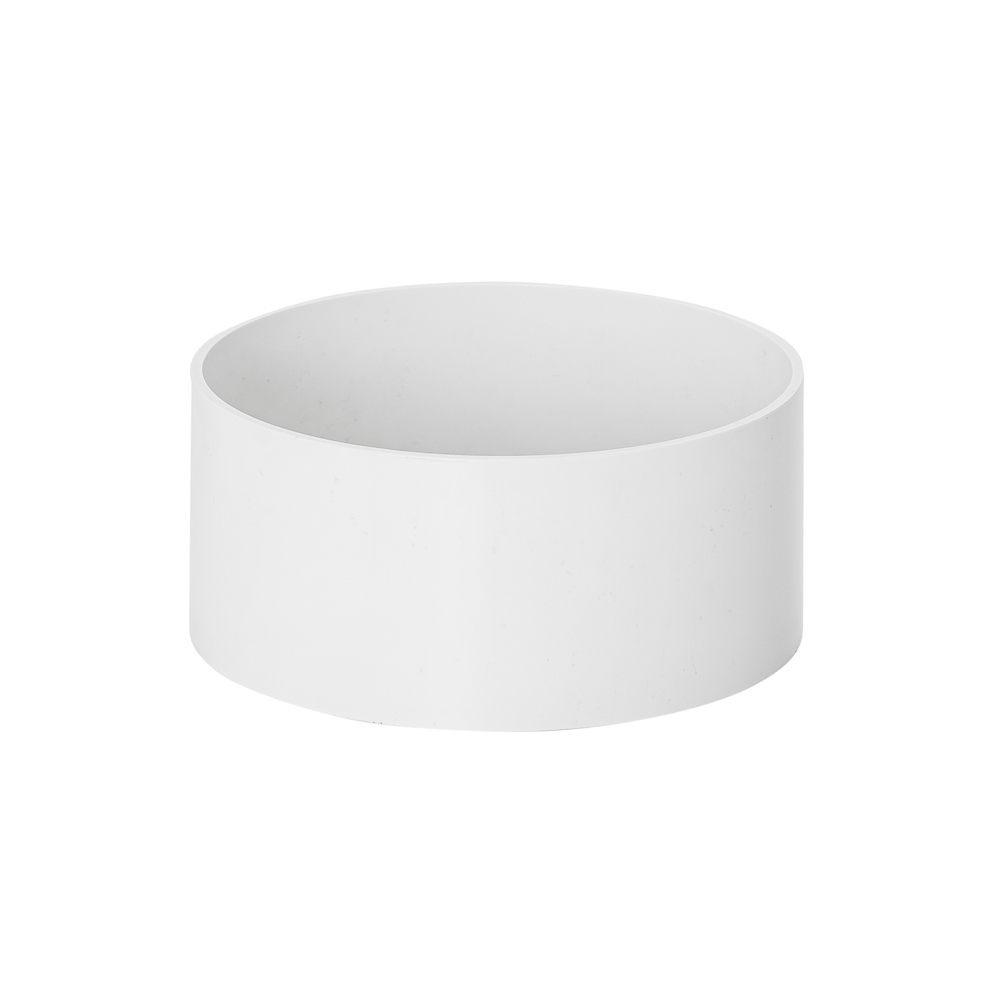

Overflow insert 150
Order Code : 3101.702

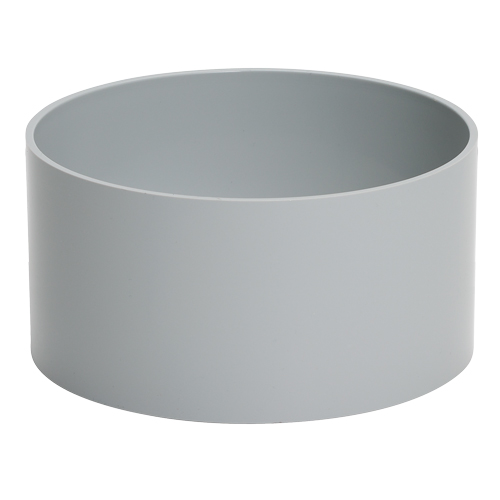

Overflow insert 225
Order Code : 3101.705

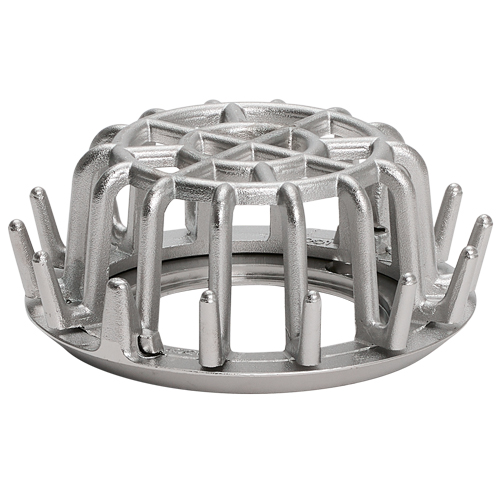

RD65 Grate Small Flange
Order Code : 3101.708

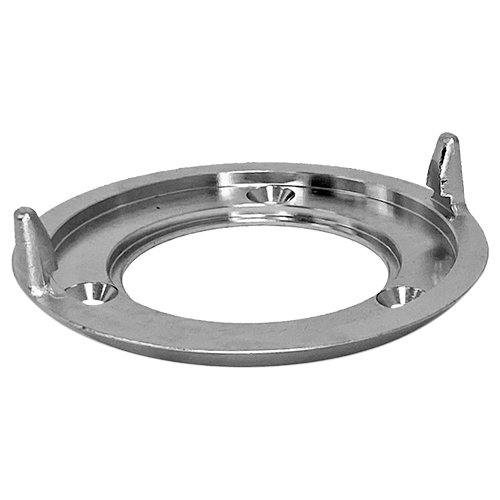

RD65 Clamp Ring Small Flange
Order Code : 3101.718

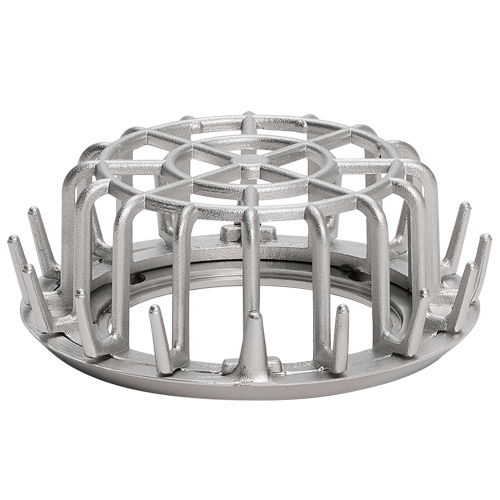

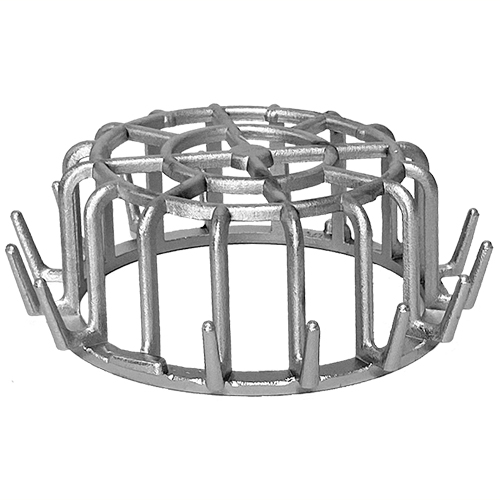

RD80 Grate Small Flange
Order Code : 3101.709

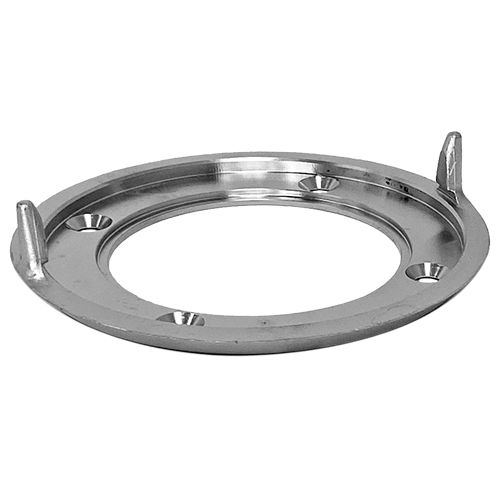

RD80 Clamp Ring Small Flange
Order Code : 3101.719

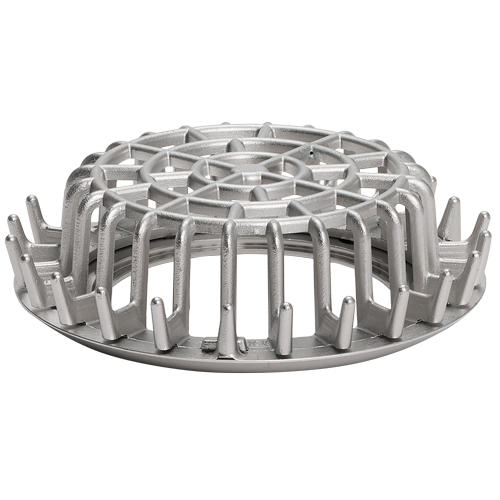

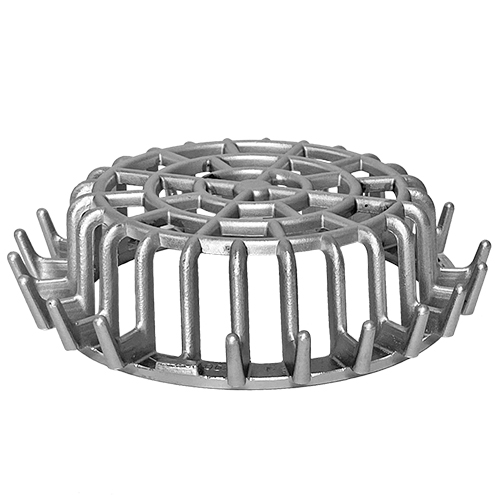

RD100 Grate & All Big Flange
Order Code : 3101.710

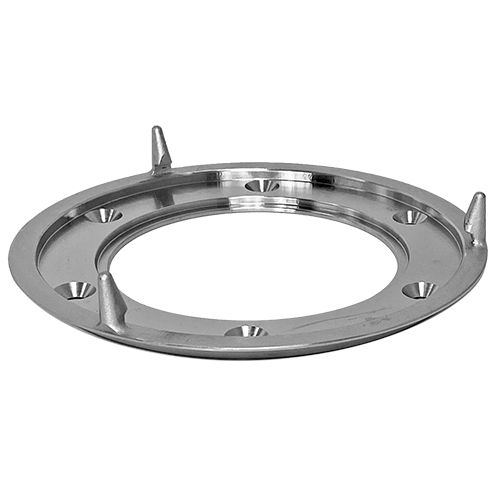

RD100 Clamp Ring & All Big Flange
Order Code : 3101.720

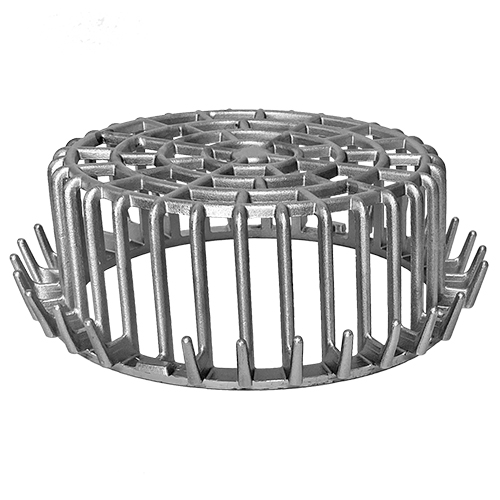

RD150 Grate
Order Code : 3101.711

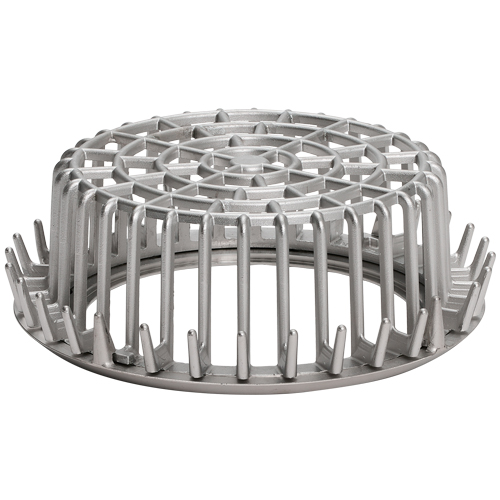

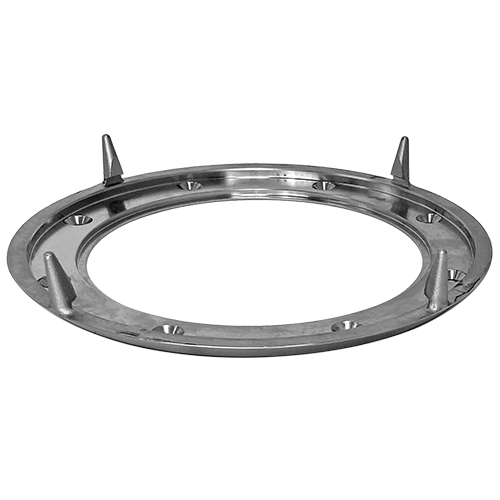

RD150 Clamp Ring
Order Code : 3101.721

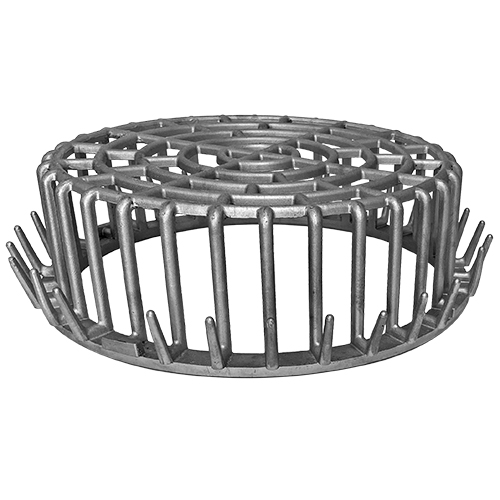

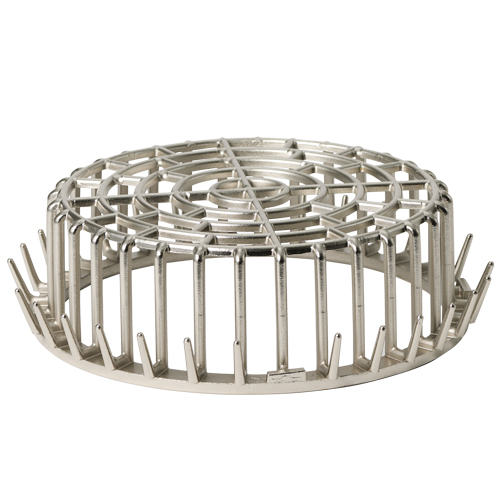

RD225 Grate
Order Code : 3101.712

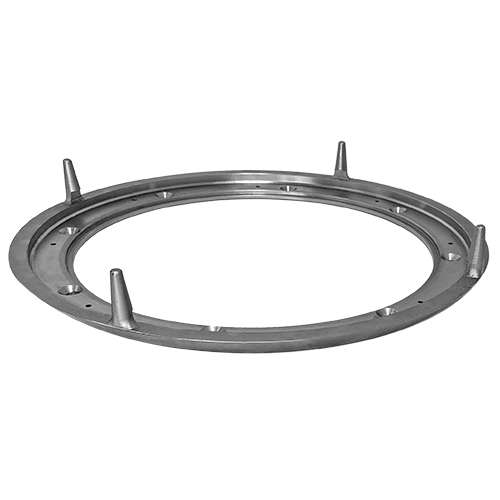

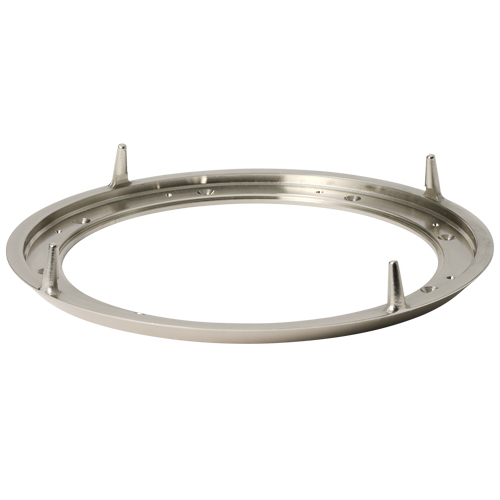

RD225 Clamp Ring
Order Code : 3101.722
Screw Set 65 3pack
Order Code : 3101.610.1
Screw Set 80 4pack
Order Code : 3101.610.2
Screw Set 100 and all big flange 6pack
Order Code : 3101.610.3

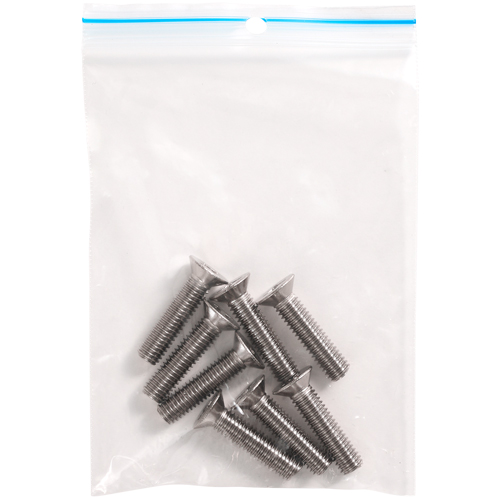

Screw Set 150 8pack
Order Code : 3101.610.4
