Hot Mix / Asphalt Membrane Drainage

Hot mix / Asphalt membrane clamping outlets

Roof Drains & Deck Drains
Full Stainless Steel • 65mm, 80mm, 100mm, 150mm, 225mm

Best option for Mastic Asphalts & Hot Mix membranes

Fully compatible with:
Liquid Membranes
Single-Layer Membrane
Multi-Layer Membrane
Torch-On Membrane

Integrating sustainability and environmentally friendly
products into your design just got easier.  Red List Free

If you are designing a Living Building Challenge project, or are environmentally conscious, our Full Stainless-Steel range of outlets are now Declare Label listed and Red List Free.

Declare is a transparency platform and product database that is changing the global materials marketplace. It lists factors such as materials used, responsible sourcing and third-party verifications.

Living Building Challenge Red List Materials contain chemicals that have been designated as harmful to living creatures, including humans, or the environment.

Our Full Stainless-Steel range is design specifically for use with all Waterproofing Membrane systems commonly installed in New Zealand.

Declare Label

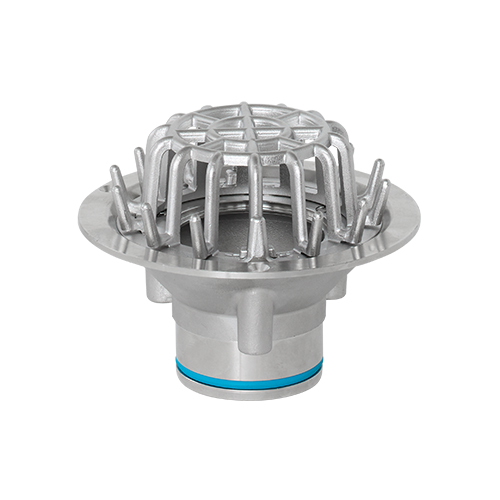

Roof Drain Bottom Exit 65mm

2 Products
Inlet size – 65mm

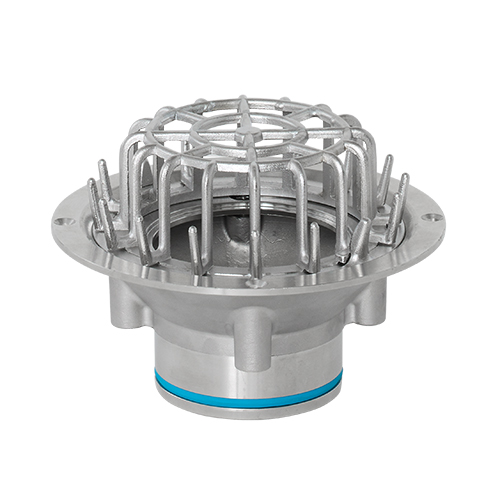

Roof Drain Bottom Exit 80mm

2 Products
Inlet size – 80mm

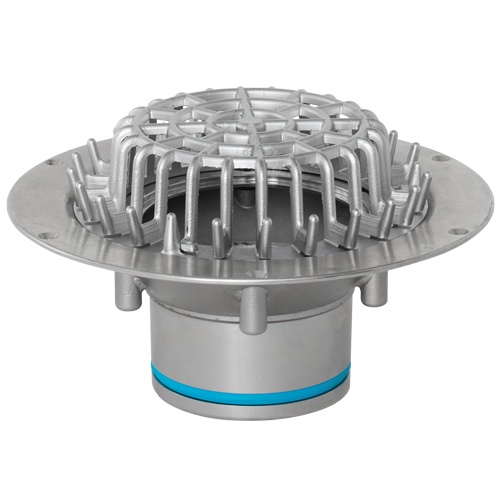

Roof Drain Bottom Exit 100mm

Inlet size – 100mm

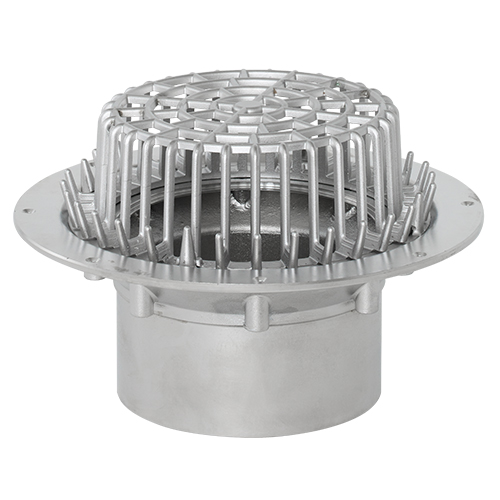

Roof Drain Bottom Exit 150mm

Inlet size – 150mm

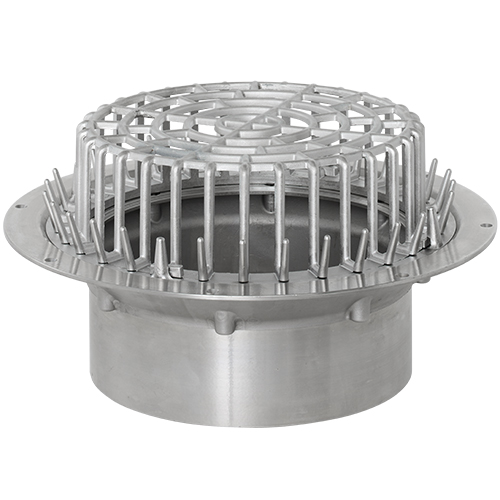

Roof Drain Bottom Exit 225mm

Inlet size – 225mm

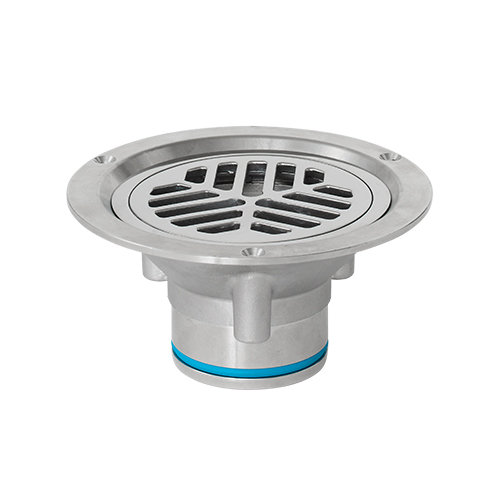

Deck Drain Bottom Exit 65mm

Inlet size – 65mm

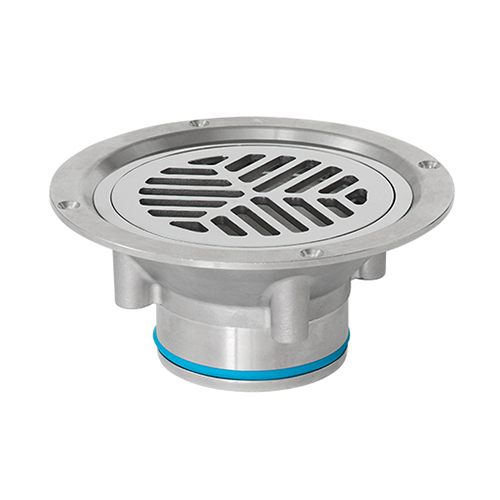

Deck Drain Bottom Exit 80mm

Inlet size – 80mm

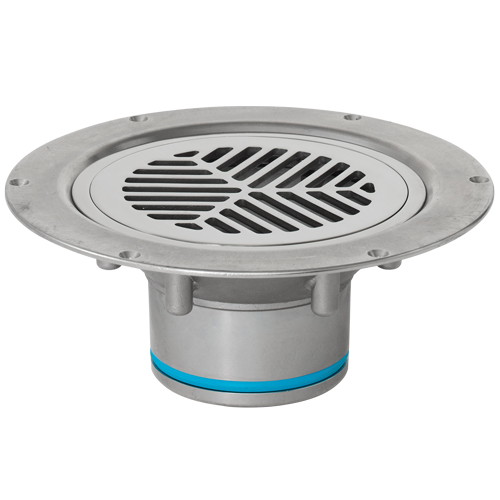

Deck Drain Bottom Exit 100mm

Inlet size – 100mm

  • Full Stainless Steel Construction
  • Engineered Clamping Range 0-12mm Membrane Thickness For Multi-Layer and Torch-On
  • Stainless Steel Lid
  • M6x25 machine screws for sound installations
  • Stainless Steel Interlocking Clamp Ring
  • Full Stainless Body
  • Clamping force over 7 tons – delivering peace of mind
  • Available in Drain and Overflow Configurations

Hot Mix / Asphalt Membrane Drain Range Reference Chart

Hot Mix / Asphalt Membrane Drain Range Reference Chart
